Below you will find, in chronological order, different articles related to news in the sector, information of interest on Morgui Clima, featured products and a series of
contents that we hope will be of interest to you.
Thanks for reading.
_____________________________________________________________________________________________________________________________________________________________________________________________

Today, April 7th, is World Health Day and for this reason we would like to share some success stories where we have recently installed AFX9 sensors.

The AFX-9 is the most competitive embedded controller on the market. It is designed for laboratories, climate engineering professionals for clean rooms, industries, data centres, ICU, isolation rooms and operating theatres.
Here is a brief report of some collaborations we have made with the country's healthcare system.



Im inicial



In hospitals
In the last months, several AFX9 sensors have been installed in operating theatres of a well-known Hospital Consortium of “Vallès Occidental”, and also more recently in health centres in the Canary Islands. Their function is to control the differential pressure, temperature and humidity in the operating room in order to maintain constant optimum temperature and humidity conditions, and to prevent the entry/exit of viruses and thus avoid contamination from the outside or the inside of these operating rooms.

This equipment has also been used in isolation rooms in the “Vallès Occidental” hospital for two different purposes: firstly, to control the temperature and humidity in order to guarantee the comfort and well-being of the patient who is admitted. Also, to maintain a depression inside the room and thus prevent the viruses for which it is isolated, such as the SARS-CoV-2 coronavirus that causes Covid-19, from going outside. The second function for which AFX9 is used in some isolation rooms is to ensure just the opposite effect: it is a protective function towards the patient, to prevent viruses and contaminants from entering the patient's room, for example, in those who suffer from immunological diseases and are immunosuppressed, or are undergoing treatment with immunosuppressive drugs, such as chemotherapy.

In all cases, customers who purchased these devices, given the pandemic situation, were widely satisfied for the reduced delivery time. Some equipment was delivered in less than 48 hours from the factory.
We would like to point out that these devices integrate the control function and this allows optimization of their BMS system (e.g. an SCADA). In addition, the equipment is so easy to configure which made unnecessary to send a technician on site to do the programming/installation of the equipment.



Covid-19 vaccine storage
During January, with the arrival of the first Moderna vaccines, one of the challenges was to set up controlled storage rooms before the vaccines landed at Barajas. In record time, we shipped 15 units of AFX9 controllers to the laboratories that acted as a receiving and logistics centre in Madrid.
In this case, the equipment was used to monitor and control the pressure, temperature and humidity variables to correctly conserve the vials of the Moderna vaccine against Covid-19 while it is distributed to the rest of Spain. The vaccine can be stored for up to six months at -20 °C, or up to thirty days at temperatures of 2-8 °C (common in most domestic refrigerators).
We are pleased to have done our bit with this collaboration because of the current importance of the vaccination campaign and its impact on collective health.



Im final



ECRO's AFX9 sensor, manufactured in France, is now an essential element in this type of installation throughout Europe. It is increasingly on demand, not only because of the technical advantages mentioned above, but also because of the large stock and fast delivery offered by the manufacturer throughout Europe.



This email address is being protected from spambots. You need JavaScript enabled to view it.



E SDG logo without UN emblem Square WEB.png      E WEB Goal 03

The AFX-9 is the new generation of laboratory displays developed by ECRO. It is designed for laboratories, clean room climate engineering, industries, data centres and operating theatres. Its new front design is available in anodised aluminium or multicoloured rigid PVC that meets the latest standards for maximum hygiene.

afx 9

The AFX-9 is a high quality controller that allows readings of differential pressure, temperature, relative humidity, and up to 6 other external variables. Thanks to its electroluminescent touch screen with variable colour set, the AFX-9 is very intuitive and easy to use. In addition, it is fully configurable according to the variables that need to be measured or controlled. It has several contact, analogue and Modbus built-in inputs and outputs.

This is the list of features that make it the most complete driver available today:

  • Free software.
  • Fully configurable.
  • Ready to read external devices of any brand, through 4...20 mi or 0...10 V signals.
  • Integrated PID control.
  • Optional temperature and hygrometry module, Plug & Play.
  • Anodised aluminium front panel with LCD touch screen.
  • IP65 protection.
  • Built-in visual and audible alarms.
  • Compatible with all types of pre-installations.

The AFX9 is fully developed, manufactured and tested in Europe (France). The AFX-9 controller complies with all the demanding EU regulations.

Currently, the demand for this equipment is growing, but even so, we can deliver it in a matter of weeks. Below, we share some success stories where we have recently installed the AFX9.

SUCCESS STORIES

Do not hesitate to contact us and consult us, Morgui Clima's team of engineers will offer you technical advice and constant accompaniment in the execution of all your projects and also direct contact with the factory.

 This email address is being protected from spambots. You need JavaScript enabled to view it.



E WEB Goal 03





Building Information Modelling (BIM) is the collaborative work methodology for the creation and management of a construction project through a digital model. Its objective is to centralize all areas of the development of a construction project, including the installations, and taking advantage of the work carried out by all the agents involved.

imagen 785x275px ENG

Within the complexity of the development of a project, the electrical, plumbing and air conditioning installations acquire a higher degree of coordination that goes beyond the initial approach and design. This coordination is also required during the construction phase, where the cooperation of industrialists from the different disciplines is essential.
With this working method, it is possible to create a large database to manage the elements that form part of the infrastructure throughout its life cycle. This cycle can be divided into 7 dimensions that incorporate geometric (3D), time (4D), cost (5D), environmental (6D) and maintenance (7D) information.

A crucial advantage of the BIM system is the immediate updating of the planimetry shared with other users. Any changes can be captured immediately and be seen and considered by the different disciplines involved in a project.

The main benefits of this work methodology are:
1. Time reduction.
2. Transparency.
3. Quality and security.
4. Increased energy efficiency.
5. Cost reduction.

Since 2016, our I+D department has constantly invested in the development of a work environment based on BIM technology with the determination of the rules and requirements of each project.
We are specifically a good component library that describes our products, generated with Autodesk BIM REVIT software. This allows us to make a more precise, real and specific computer-assisted installation design.

This email address is being protected from spambots. You need JavaScript enabled to view it.

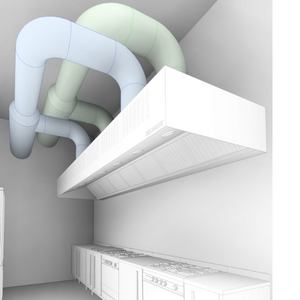

Below you can watch a video where we show how to create an extraction and air supply installation for a restaurant kitchen. We also show how to load the families of hoods and extraction boxes and how to change some of the options that allow you to configure them.









If you want to download our hoods and boxes in REVIT format, you can do so below in the Morgui product library:



campana beret        BERET   Beret Extractor Hood: 400mm height and filters 490x400x50mm.

cajaunic400

       UNIC 400   Ventilation box with built-in 400º/2h fan and motor to transmission.
campana vilak        VILAK   Vilak Extractor Hood: 500mm height and filters 490x490x50mm.

cajabasic

       BASIC   Ventilation box with built-in double hear fan and motor to transmission.
campana garos        GAROS   Garos Extractor Hood: 400/500/610mm height. Filters according to model.   cajacubic        CUBIC   Ventilation box with built-in double hear fan and motor to transmission.
campana sils        SILS   Sils Extractor Hood: 390mm height and filters 490x400x50mm.

cajacd

       CD   Ventilation box with centrifugal fan and motor to incorporated to axis.
campana horno        HORNO   Horno Extractor Hood: 310/390/500mm height. Filters according to model.   cajaclass        CD CLASS   Ventilation box with centrifugal fan and motor to incorporated to axis.
campana slim        SLIM   Slim Extractor Hood: 310mm height and filters 490x250x25mm.
campana blok        BLOK   Blok Extractor Hood: 520/650mm height and filters 490x490x50mm.





It is currently mandatory in many countries such as the United States, the United Kingdom, the Netherlands, Denmark, Finland, Norway and Sweden. In Spain, following European directives, a precise reference is made in Law 9/2017 on Public Sector Contracts stating that "contracting authorities may require the use of electronic tools, such as digital building information modelling (BIM) tools or similar tools". As of the end of 2018, in order to give new impetus to the BIM implementation process in the country, the Council of Ministers approved through Royal Decree 1515/2018 the creation of the Interministerial Commission for the incorporation of BIM methodology in public procurement.
Furthermore, the digitization of construction is a key aspect in sustainable development and is included in the 2030 Agenda, specifically in goals 9 and 11 set by the UN.

This tool is a remarkable evolution of traditional design systems based on plans and represents an improvement in the representation of the constructive reality of building projects. BIM methodology is the present and future of public works contracting in Spain, Europe and much of the world.

E SDG logo without UN emblem Square WEB.png    E WEB Goal 09







E WEB Goal 11

Today, the World Water Day, at Morgui Clima we want to join the campaign to raise awareness of the importance of this limited resource. This year's slogan is "Valuing water".
Nowadays, water is an extremely threatened resource due to population growth, the ever-increasing demand from the agricultural and industrial sectors, and the increasingly serious effects of climate change.

Water Recirculation Module
At Morgui Clima we try to do our bit to save water with our products. One example is the automatic water recirculation module of exclusive Morgui design. By means of a mechanical filtration and another by decantation, this module makes it possible to use the water coming from the grease filtration systems by means of atomised water. It can be complemented with a control panel that includes control and regulation controls, potentiometers and pilot lights for control, breakdown, cleaning and optionally also frequency variable drives for water pressure control. With this control panel we make the equipment even more efficient.

mòdul

Grease separator
This recirculation module has a grease separator as a central element. Animal fats and vegetable oils must not be discharged into the sewage system, as they would clog the pipes. Manufactured according to the European technical standard EN 1825 and German DIN 4040, separators with nominal capacities of 0.3, 0.5 and 2 l/s are available.
The water enters the separator via an elongated baffle which allows a slow and uniform distribution of the incoming flow. Fats and oils are separated and rise to the surface by gravity. During the operation, a floating layer is generated becoming thicker and when the maximum storage volume is reached, the fats have to be removed. In restaurants, we can calculate the requirements based on the number of meals per day. For example, a restaurant with 150 meals per day uses a flow rate of 2 l/s.
It is a compact and functional design finished in stainless steel and requires little maintenance.

Separador greixos9

The water recirculation module is designed to save water consumption in water filtration systems such as a Morgui HIDRO hood or Morgui wet filtration modules. These options are especially recommended for wood or charcoal cookers, rotisseries or high temperature extractions.
You will find more information on these two products by clicking below.

We are driven by the will to be sustainable and therefore to offer you the best options so that you can be sustainable too!

E WEB Goal 11 E WEB Goal 12 E WEB Goal 13 E SDG logo without UN emblem horizontal CMYK Transparent
