Extractors in line for rectangular ducts of low profile, with lid of inspection to facilitate the cleaning.

TCR / R Series

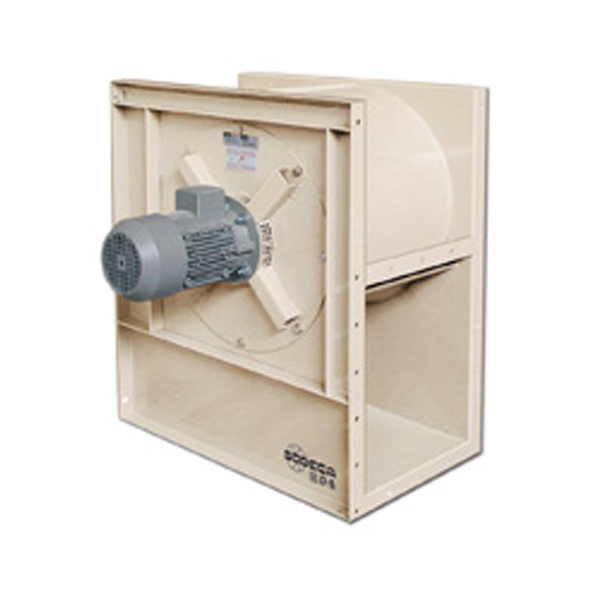

Centrifugal extractors and extraction units 400º/2h with reaction turbine, to work outside the fire risk zone.
Of simple aspiration and great robustness, equipped with turbine with blades backwards.
Envelope in sheet steel. Homologation according to EN 12101-3 standard with certification Nº0370-CPR-0400. Class F motors, with ball bearings, IP55 protection.
IE3 efficiency motors for powers equal to or greater than 0.75kW, except single-phase, 2-speed and 8-pole. Three-phase 230/400V-50Hz (Up to 4kW).
Maximum temperature of the air to be transported: service S1 -20ºC + 250ºC continuous, service S2 300º/2h and 400º/2h.
Anticorrosive in polyester resin polymerized at 190ºC, previous degreasing with phosphate-free nanotechnological treatment.
