UNIC RS 400º 2H AIR BOX

UNIC RS 400º/2H simple aspiration ventilation box (reaction). Simple aspiration ventilation box with built-in fan in its interior approved to drive air at 400ºC.
Description

UNIC RS 400º/2H simple aspiration ventilation box (reaction)

Simple aspiration ventilation box with built-in fan in its interior approved to drive air at 400ºC

/2H according to the EN 12101-3 norm. Aluminum or galvanized profiles for the structure finish. All the lateral lids, inferiors or superior of the 400ºC/2H boxes are assembled in lacquered or galvanized sheet. All the sides of the box are registrable through screws in compliance with the CE norm. The box has the purpose to insulate acoustically the fan as well as protecting the fan from the atmosphere avoiding any manipulation to comply with the CE standard regarding the machines safety.

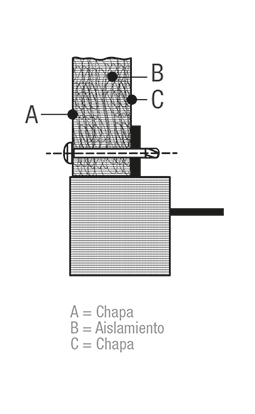

The SANDWICH box can be provided in two finishes:  smooth or perforated steel sheet. The SANDWICH panel incorporates insulation with thermal and acoustic insulation 15mm thickness polyethylene closed cell foam and A2 fire protection.

The aspiration box incorporates a circular flange with standardized diameter. The entry and exit connection are done through a 45/60/45 anti-vibration rubber gasket, A1 classification against fire.  All ventilation boxes include a gland to facilitate the entry of the electric cable.

The boxes are supplied in the following positions: RD90, RD0, LG90, LG0 (suction entrance right or left, horizontal or vertical).

To facilitate its anchoring to the ground, to the bench or to a wall support and to facilitate the installation of additional shock absorbers the boxes are supplied with two longitudinal metallic supports for the small sized models and a perimeter support for the big-sized models in order to give a greater robustness in its anchoring.

The motors are B3, IP55, EI1 or EI2 according to the regulations in force. They are mounted on the tightening base attached to the bench and are outside the airflow. The engine runs through trapezoidal belts SPZ type according to standards BS-3780, ISO-4181, DIN-7753, DIN-2215.

Technical Data Sheet

Check prices.
