ELECTRIC CONTROL PANEL WITH SOFTLY STARTER

Designed for the progressive start of electric motors with the advantage of reducing the starting intensity extending the lifetime of engines, gearboxes and couplings. For 400Vac motors. The cabinet incorporates a forced ventilation.
Description

Electric switchboard with smooth start

Designed for the progressive start of electric motors with the advantage of reducing the starting intensity extending the lifetime of engines, gearboxes and couplings. For 400Vac motors. The cabinet incorporates a forced ventilation. It includes a circuit magneto thermic, a 24V power supply, gearbox and selector of gears and thermic. Possibility to remotely control it through an external signal potential-free. Power terminals and glands for hose ducting.

Switchboard to start the motor with a smooth starter.

Model description, Sales price, Stainless steel sales price, Metallic sales price, Polyester.

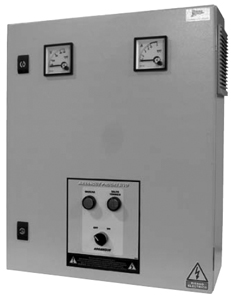

Metallic cover / polyster / stainless steel with ammeter and voltmeter in the door.

VADS31 Electric switchboard 0,75 Kw / 1 hp. 5 A.

VADS32 Electric switchboard 1,5 Kw / 2 hp. 5 A.

VADS33 Electric switchboard 2,2 Kw / 3 hp. 5 A.

VADS34 Electric switchboard 4 Kw / 5,5 hp. 9 A.

VADS35 Electric switchboard 5,5 Kw / 7,5 hp. 12 A.

VADS36 Electric switchboard 7,5 Kw / 10 hp. 16 A.

Box dimensions: 400x300x210mm. The 400Vac connection board needs a neutral for the powering action. It is delivered packed in a wooden box with the identifying label.  PFE series with static starter incorporate an internal bypass. The function of this one is to minimize the heat loss caused by the driving of the semiconductors and the lengthening of the life cycle of these ones,

producing a by-pass between the entrance and the exit. Ramp time adjustable up to 30s and pedestal voltage from 30 to 100%.

Ask for prices
