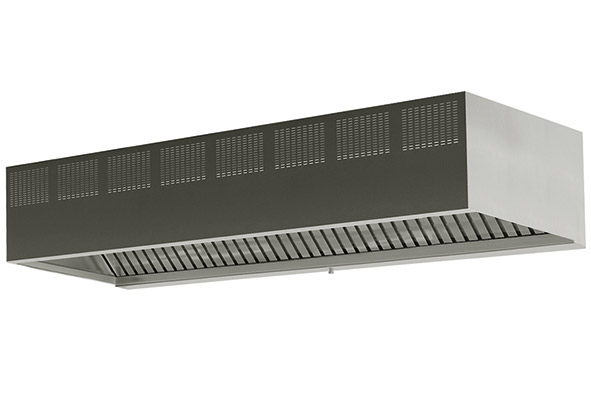

MORGUI XERTA HOOD

Extractor hood designed with built-in input plenum and for smoke-generating cooking zones.
Description

· Morgui industrial extractor hood with incoporated contribution.
· Designed for cooking areas that generate a lot of smoke.
· Special constructions on request.
· XERTA 65 Series
  650mm height. 400mm + 250mm contribution plenum.
  AISI 430 490x400x50mm stainless steel plate filters included in the price.
· XERTA 70 Series
  700mm height. 400mm + 300mm contribution plenum.
  AISI 430 490x400x50mm stainless steel plate filters included in the price.
· XERTA 75 Series
  750mm height 500mm + 250mm contribution plenum.
  AISI 430 stainless steel plate filters 490x490x50mm included in the price.
· XERTA 80 Series
  800mm height. 500mm + 300mm contribution plenum.
  AISI 430 stainless steel plate filters 490x490x50mm included in the price.

TECHNICAL INFORMATION

· Applications: Extraction for industrial kitchens.
· Format: Wall or central.
· Construction: Fully welded bell in one piece up to 7m reducing possible linear deformations, eliminating dripping between joints and non-visible points of dirt.
                         Optional multi-piece construction.
                         Without extraction plenum or regulation.
                         With plenum of contribution, without joint in the frontal until 4m.
Material: Parts seen in 1mm thick AISI 304 stainless steel sheet. Roof not seen in galvanized.
Finishes: Contribution plenum with anti-condensation insulation included.
                Punching front for air supply.
                Tubular structure for a better robustness of the set.
                Double folding in all sheet metal ends to avoid all kinds of accidental cuts.
                No hidden screws or strange edges for easier cleaning.
                OPTIONAL LUMINARY.
Grease collector: Perimeter connected to the lower tray without the possibility of dripping.

DOWNLOADS

Technical Data Sheet
Wall Extractor hoods Installation Manual
Central Extractor hoods Installation Manual
Maintenance Manual
Prices

Morgui Clima SL manufactures its own MORGUI branded hoods specially designed for hostelry sector.
The high quality of it hoods fully welded made them ideal for installations where the quality performance and the finishes are the professional target.
The arrange of available hoods is very wide with different height in order to adapt to any installation.
